Auf einen Blick
Außenlautsprecher
Im Detail
Like all the 100-T Series products, the outdoor 100 OD6-T is fitted with an adjustable transformer which adjusts the power of the loudspeaker within a 70 volt / 100 volt system so the loudspeakers can be linked together to cover a large listening area. It also has an 8 ohm position to meet the needs of conventional systems.
The 100 OD6-T is fitted with a high-density, shock-absorbing, UV-treated cabinet and is IP66* certified, meaning it is watertight and dust-proof. Incorporating Focal technologies, the loudspeaker produces high quality sound outdoors.

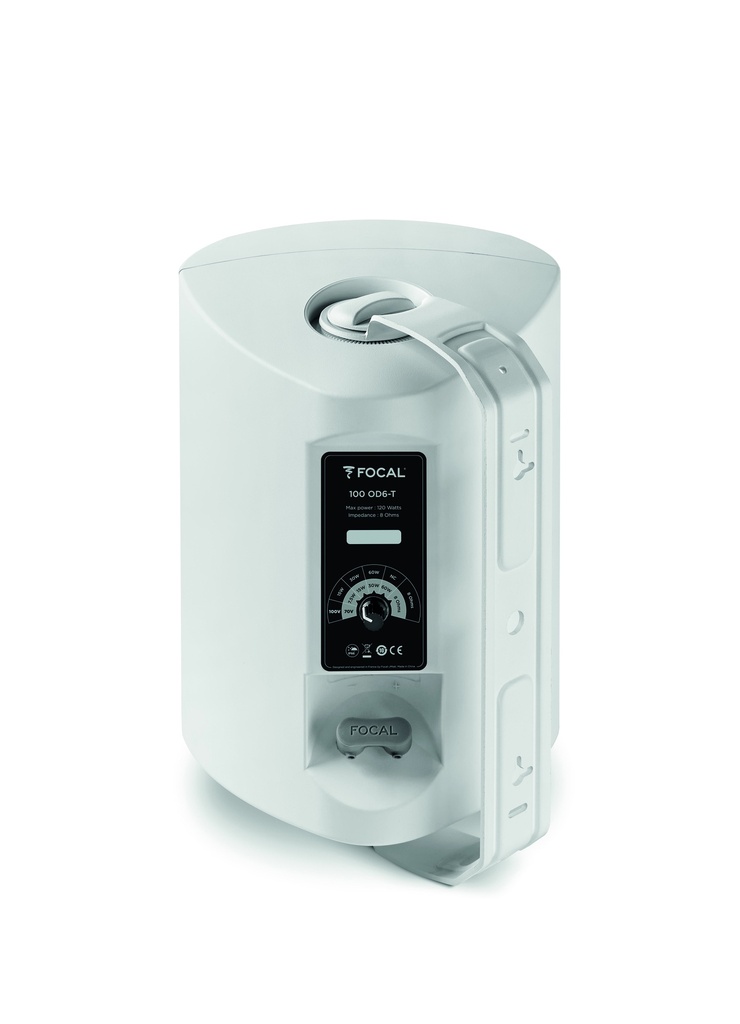

With a mounting bracket and a rotation system, it is easy to install and position, too. And for seamless integration, the grill and cabinet are available in a black finish or white ready-to-paint.
*Established by theInternational Electrotechnical Commission (IEC), IP codes are international standards used to identify the degrees of protection of products against the ingress of solid or liquid foreign objects. The first digit of the IP code represents the level of protection against the ingress of solid foreign objects, such as dust (0 to 6). The second digit represents the level of protection against harmful ingress of water (0 to 8).
| Type | Outdoor loudspeaker |
|---|---|
| Speakers | Aluminium inverted dome tweeter, 6½" (165 mm) waterproof woofer with Polyglass treatment |
| Sensitivity (2.83 V / 1 m) | 87 dB |
| Frequency response (±3 dB) | 65 Hz - 23 kHz |
| Low frequency point (-6 dB) | 55 Hz |
| Power in 8 Ω | 60 W |
| Power in 70 V | 7.5 W / 15 W / 30 W |
| Power in 100 V | 15 W / 30 W / 60 W |
| Recommended amp power | 20 - 120 W |
| Filtering frequencies | 2,800 Hz |
| Produktabmessungen | 224 x 256 x 319 mm |
| Nettogewicht | 4.10 kg |
| Minimale Bestellmenge | 1 Stk. |
| Marke | Focal |
| Serie | Intergrated Systems |
Spezifikationen
| Ausführung | White, Black |
| Marke | Focal |
| Serie | Intergrated Systems |
