Beschreibung

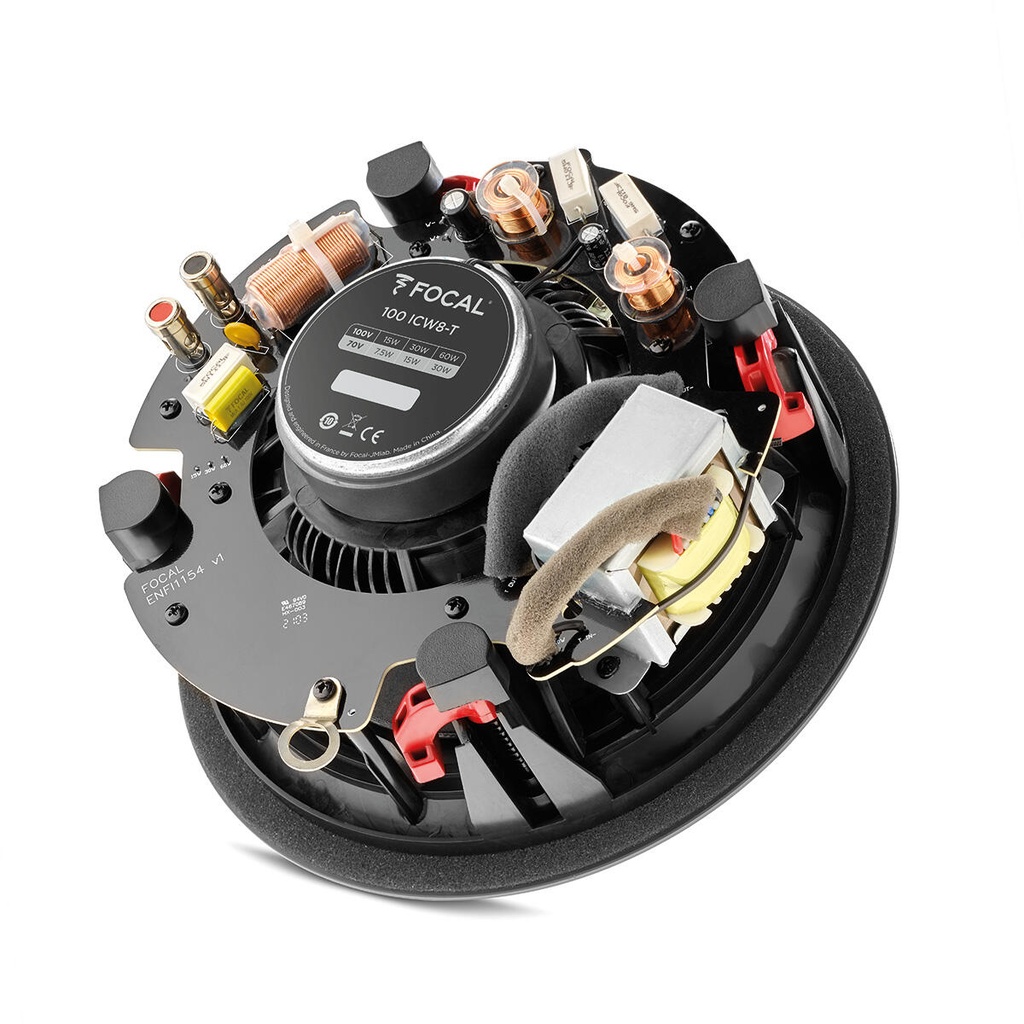

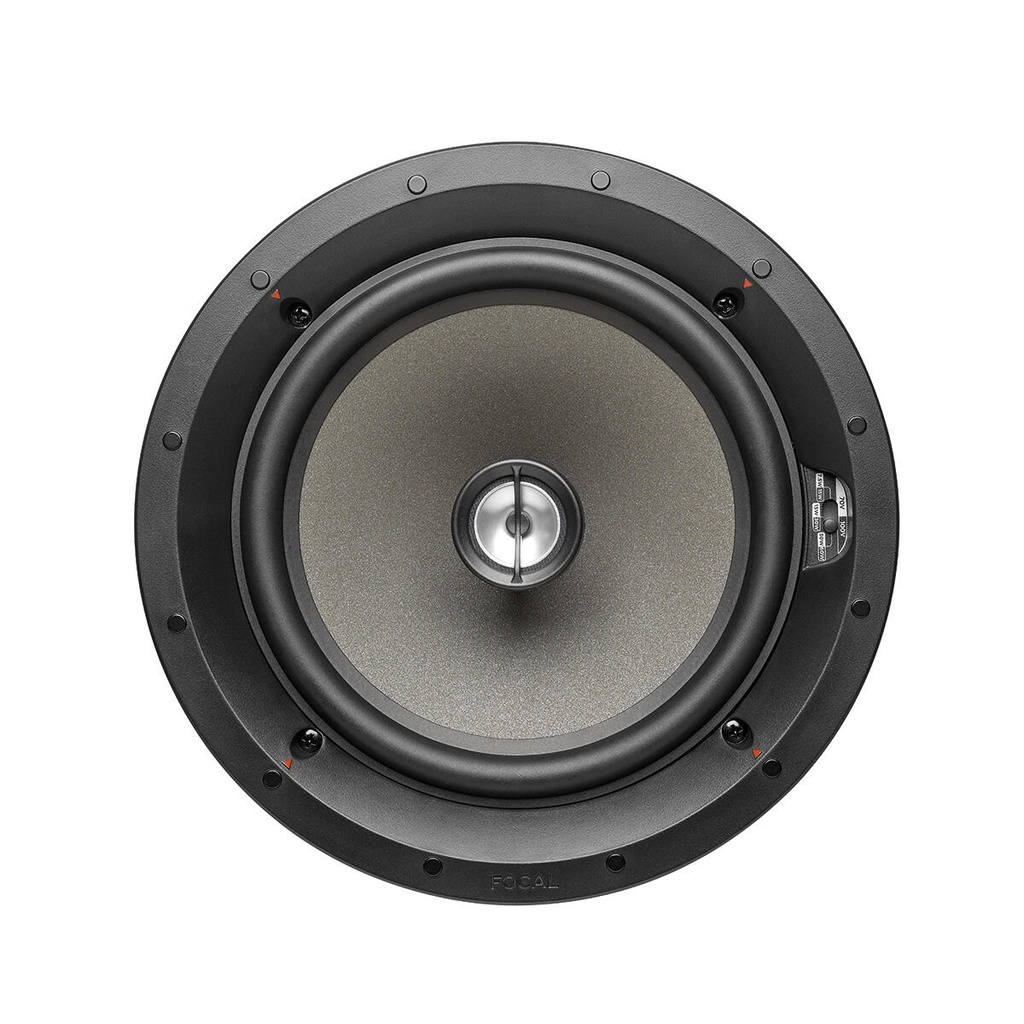

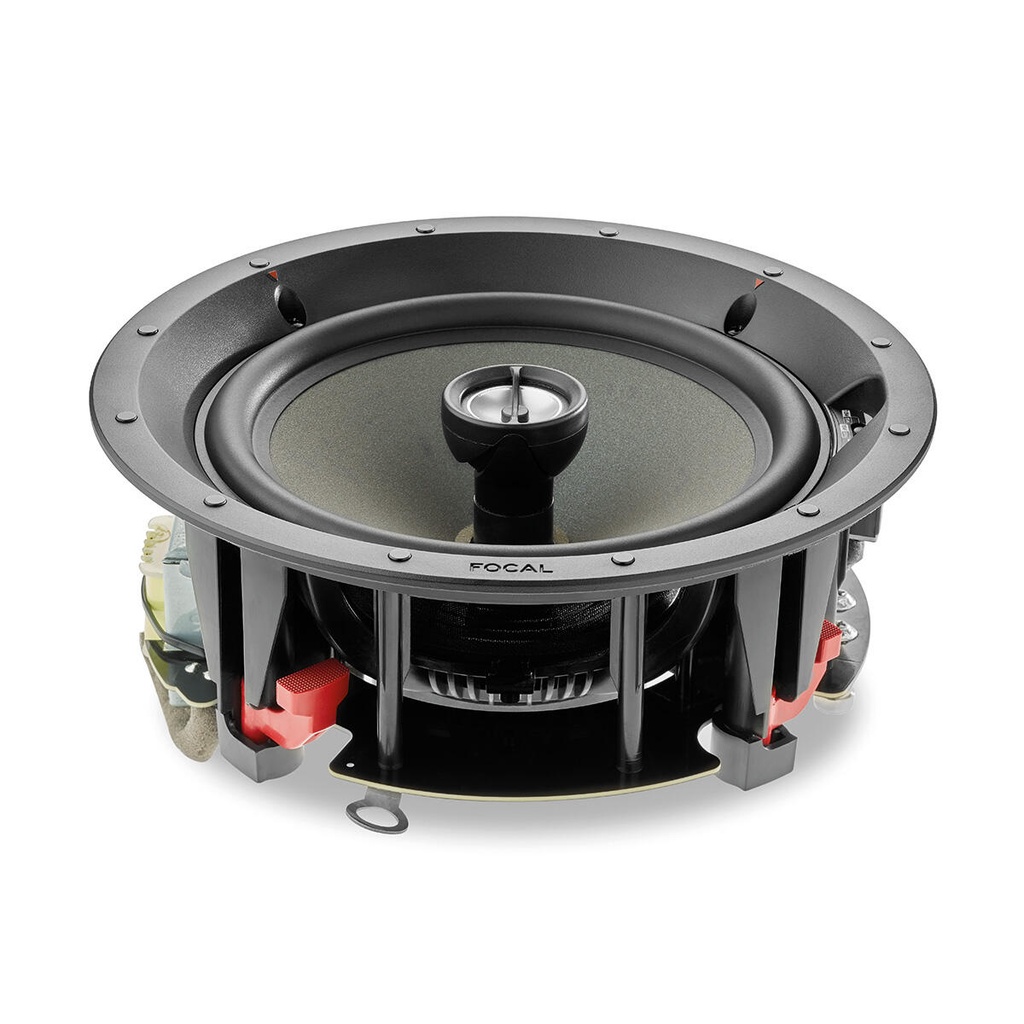

Designed and developed in France by Focal, the 100 ICW8-T loudspeaker is composed of a 8" (21 cm) midrange speaker driver with Polyglass cone and a 1" (25 mm) Aluminium tweeter. Like all the products in the 100-T Series, it has an adjustable transformer which adjusts the power for a 70 volt / 100 volt system. The transformer thus makes it possible to link the loudspeakers together and cover a vast listening area!

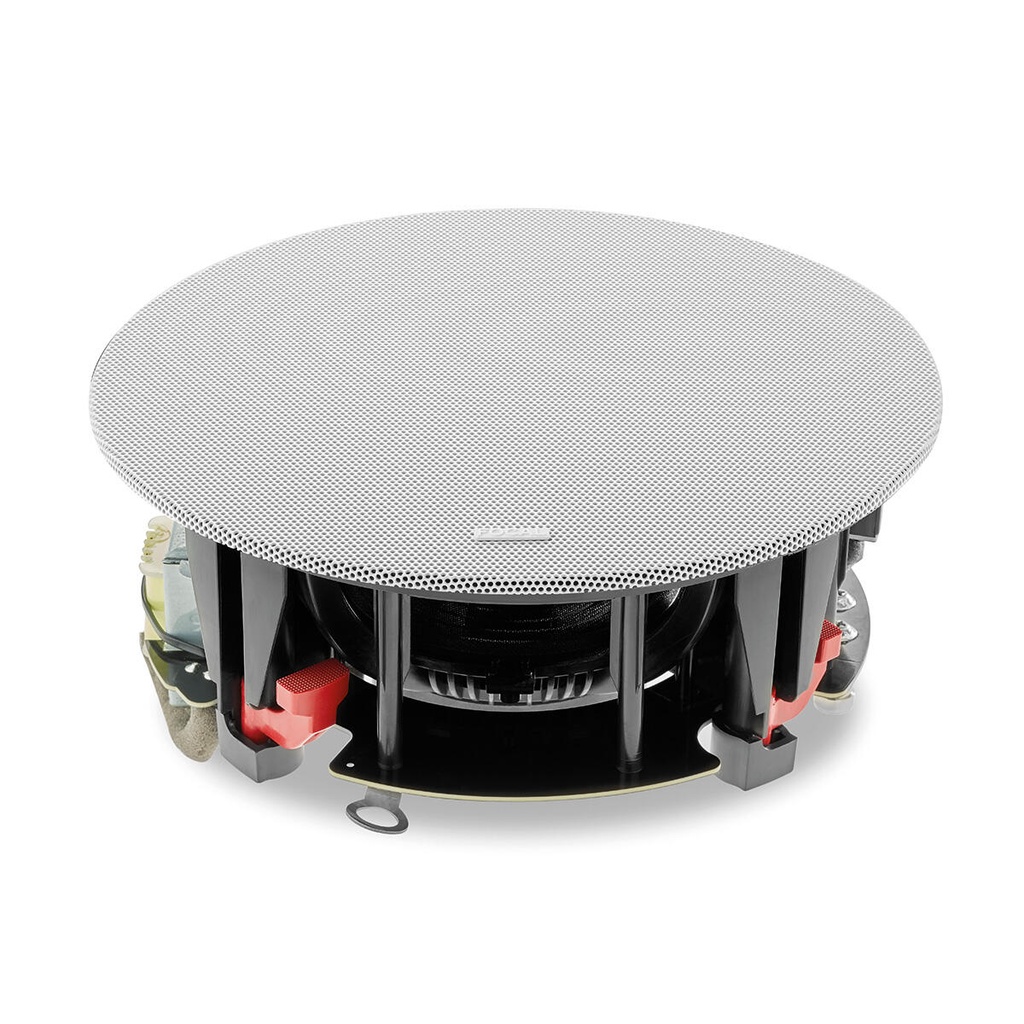

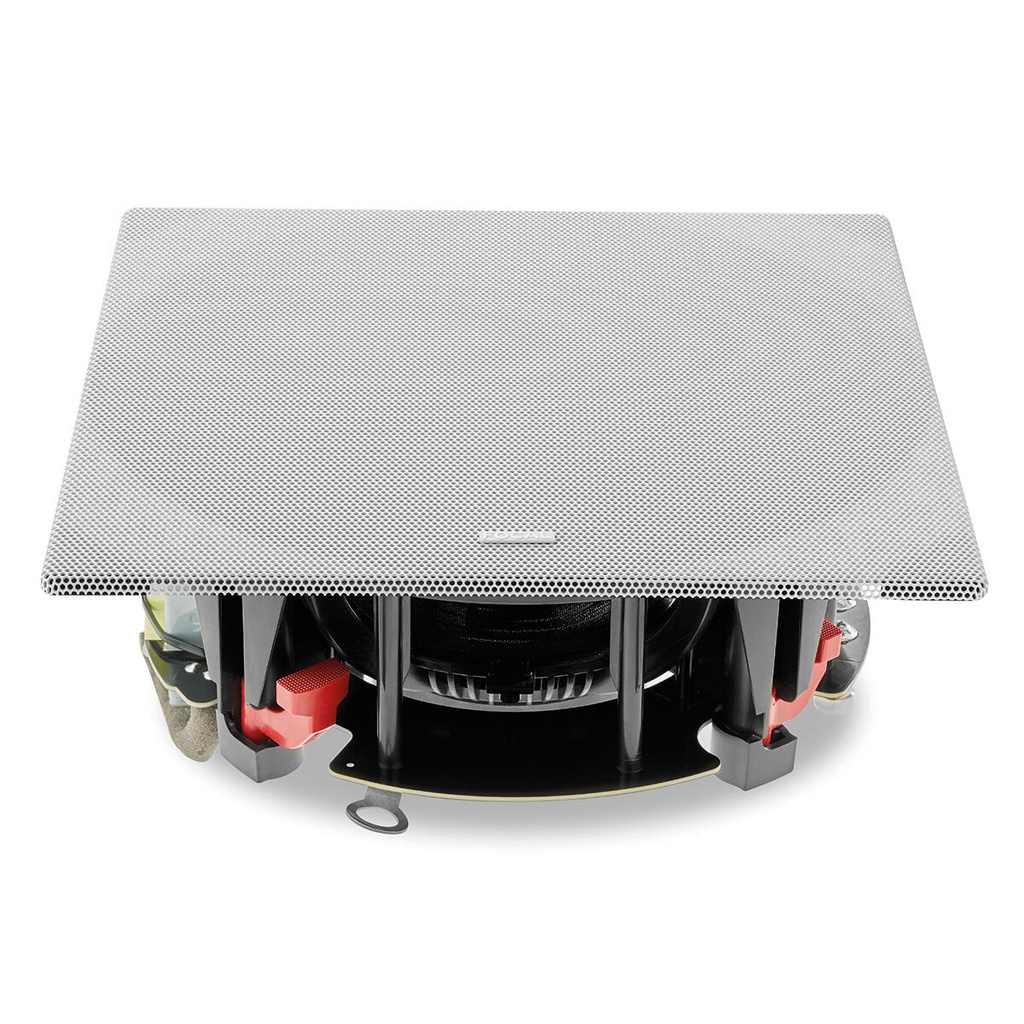

The 100 ICW8-T speaker driver also has very low directivity, which removes any "shower effect" and creates high-quality, uniform sound throughout the whole space. Compact and with a round or square ready-to-paint grille, the 100 ICW8-T is easy to install and discreet wherever it is positioned.
Spezifikationen
| Type | In-wall / In-ceiling - 2-way coaxial for 100 V / 70 V line installation |
|---|---|
| Drivers | 8" (21 cm) Polyglass Midbass, 1" (25 mm) Aluminium inverted dome Tweeter |
| Sensitivity (2.83 V / 1 m) | 90 dB |
| Frequency response (±3 dB) | 53 Hz - 23 kHz |
| Low frequency point (-6 dB) | 40 Hz |
| Power in 70 V | 7.5 / 15 / 30 W |
| Power in 100 V | 15 / 30 / 60 W |
| Recommended amplifier power | 15 - 100 W |
| External dimensions (Ø / Depth) | 248 x 111 mm |
| Cut-Out diameter | 224 mm |
| Depth from wall | 107 mm |
| Produktabmessungen | 248 x 248 x 111 mm |
| Bruttoabmessungen | 310 x 310 x 185 mm |
| Nettogewicht | 2.30 kg |
| Bruttogewicht | 3.60 kg |
| Minimale Bestellmenge | 1 Stk. |
| Marke | Focal |
| Serie | Intergrated Systems |
