Auf einen Blick
Wand-/Deckenlautsprecher
Im Detail
Beschreibung

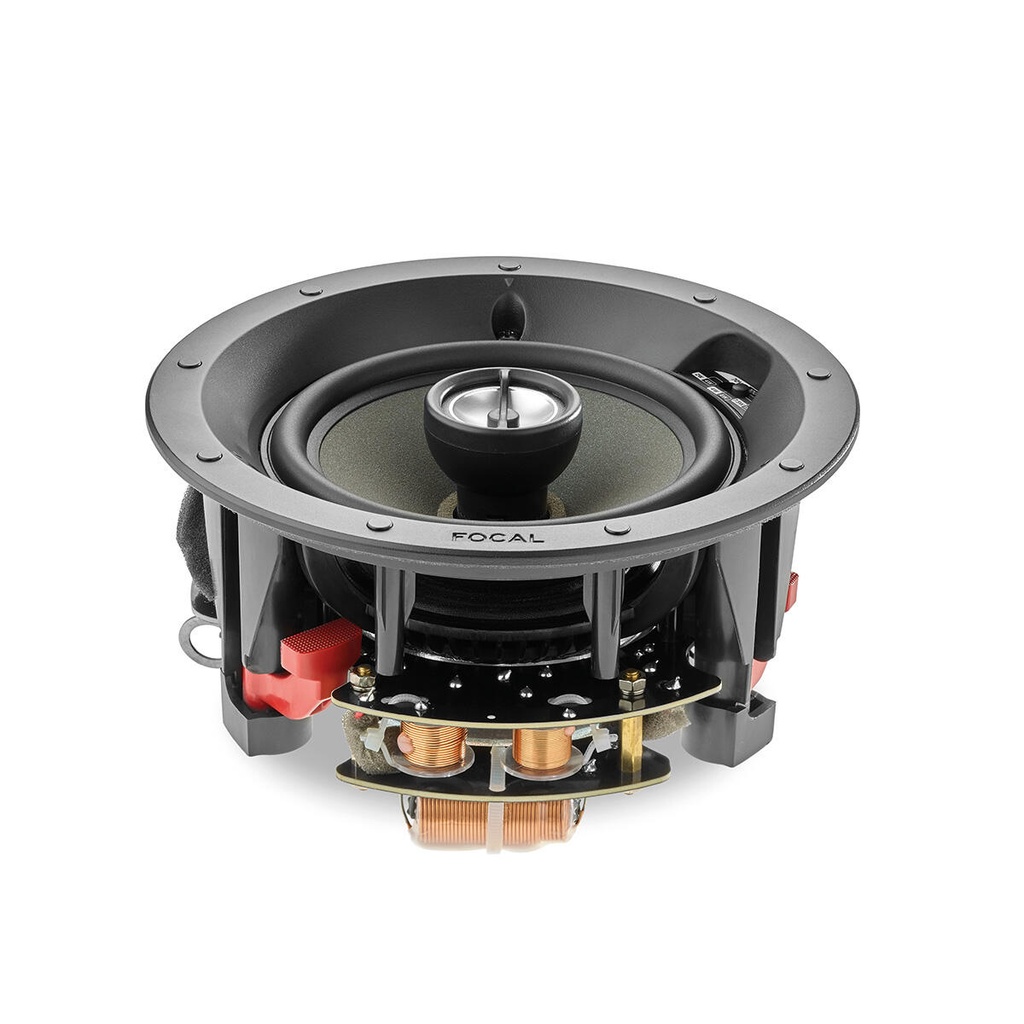

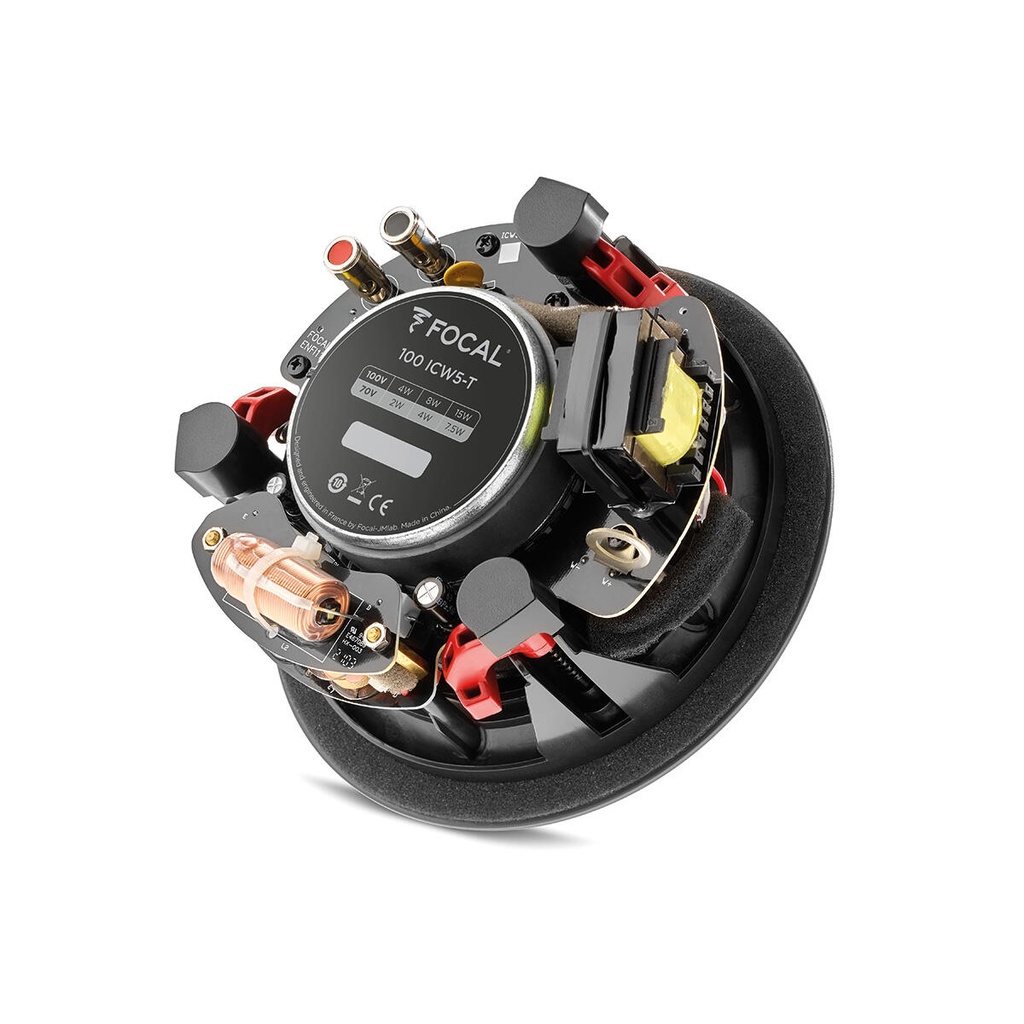

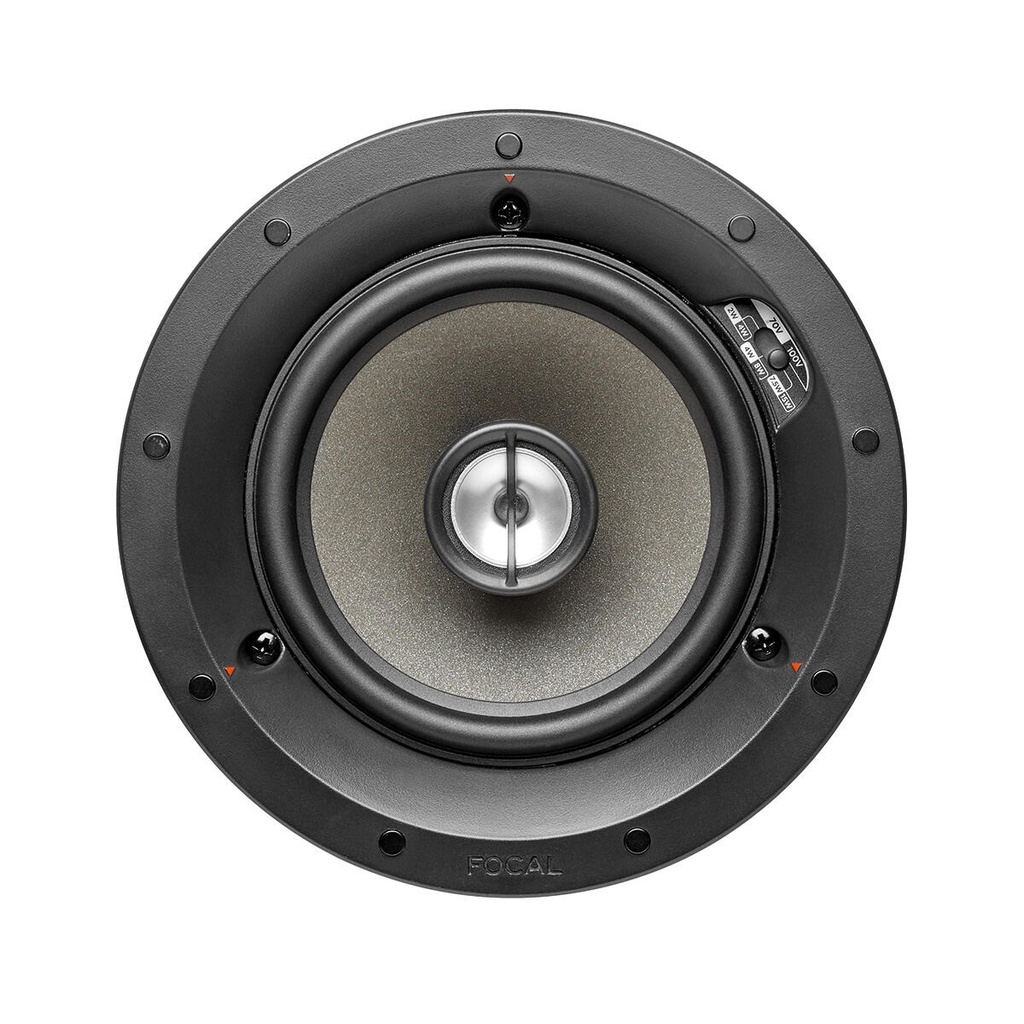

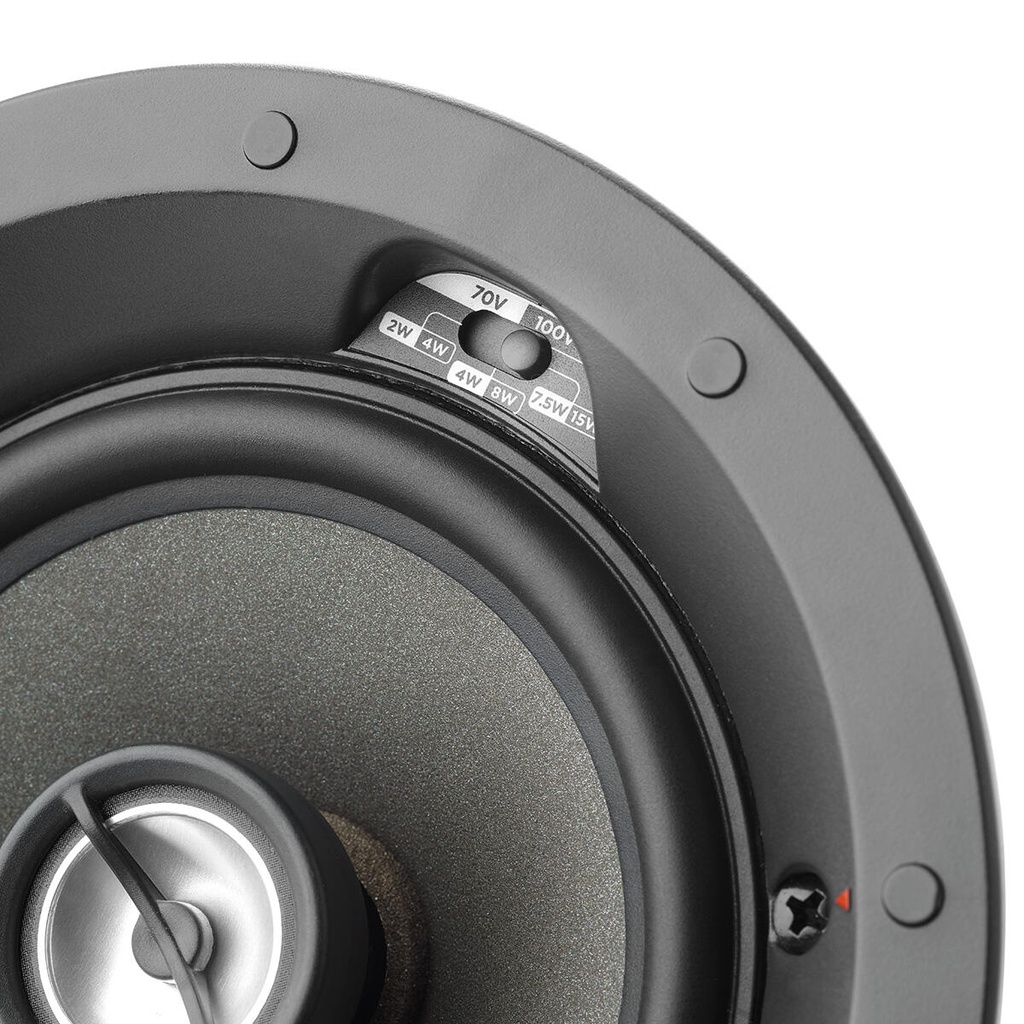

Designed and developed in France by Focal, the 100 ICW5-T loudspeaker is composed of a 5" (13 cm) midrange speaker driver with Polyglass cone and a 1" (25 mm) Aluminium tweeter. Like all the products in the 100-T Series, it has an adjustable transformer which adjusts the power for a 70 volt / 100 volt system. The transformer thus makes it possible to link the loudspeakers together and cover a vast listening area!

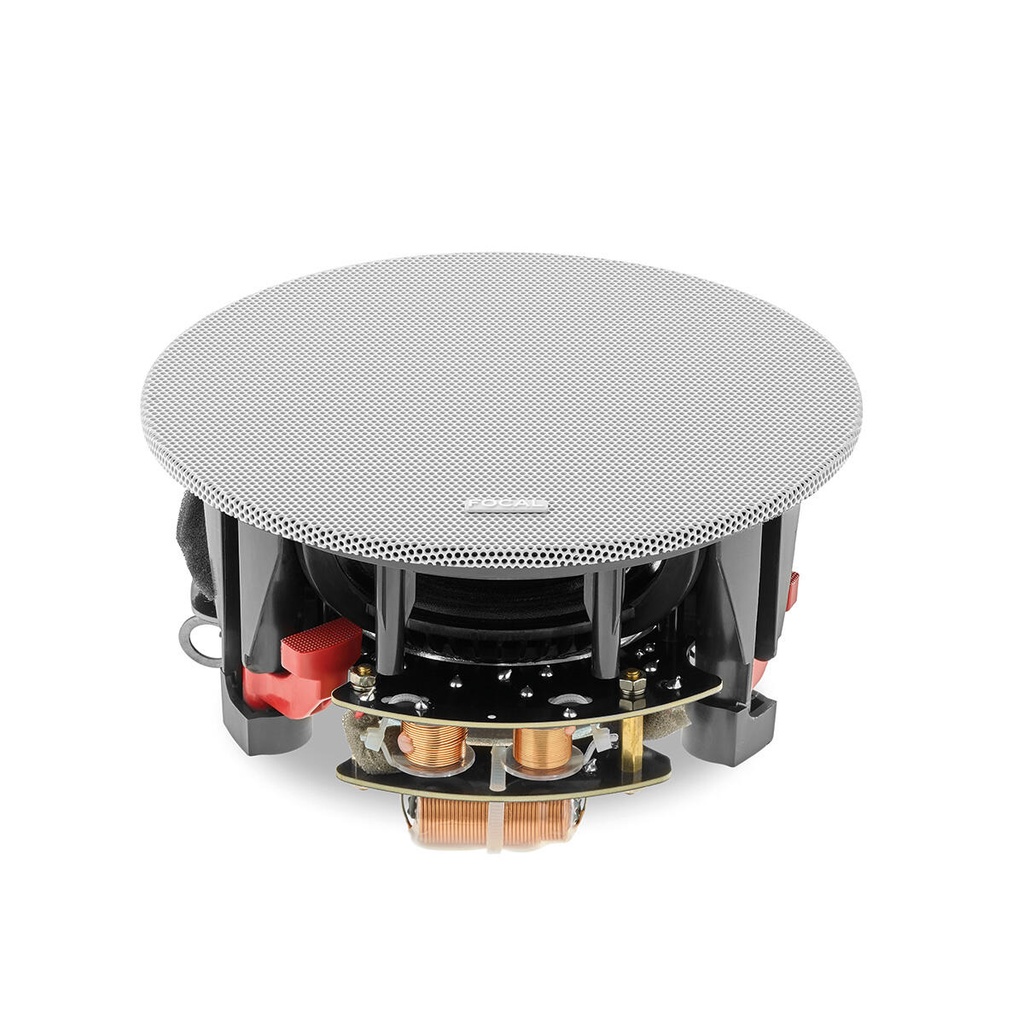

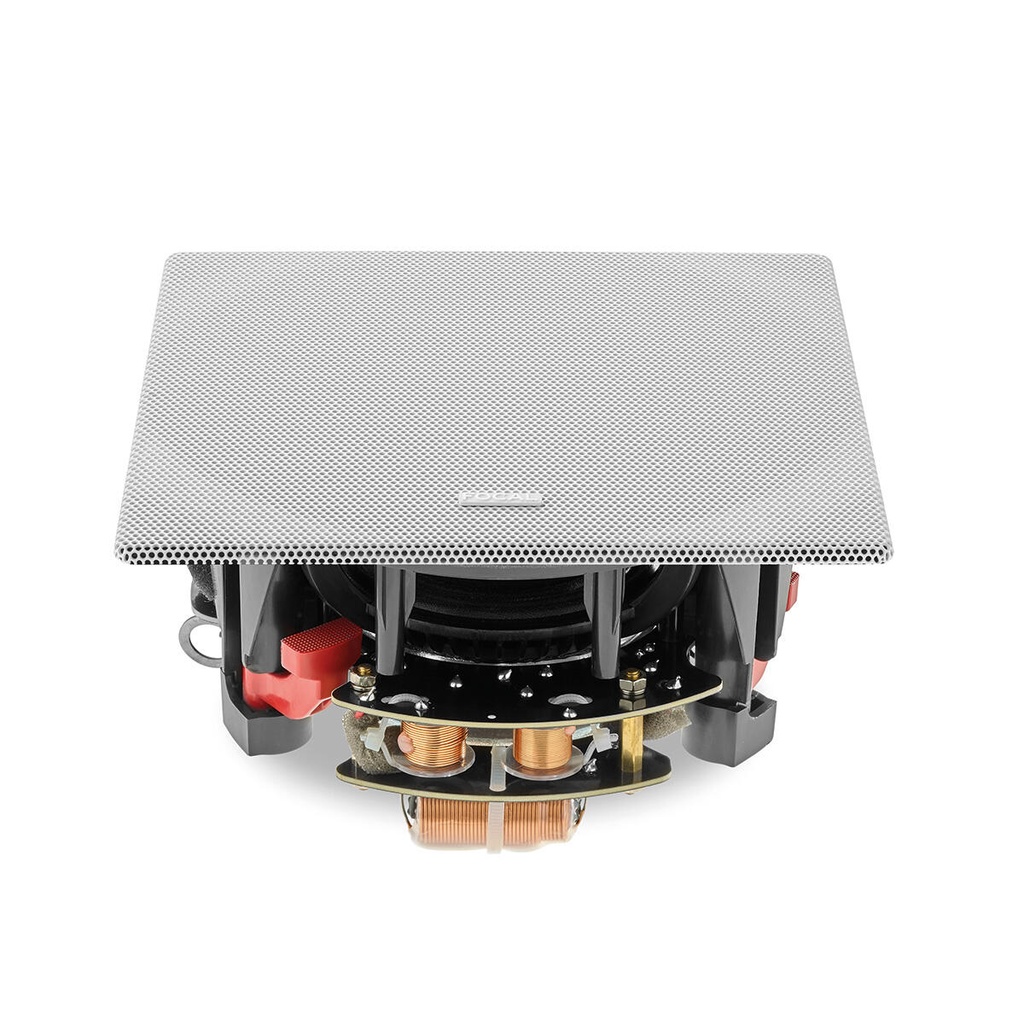

The 100 ICW5-T speaker driver also has very low directivity, which removes any "shower effect" and creates high-quality, uniform sound throughout the whole space. Compact and with a round or square ready-to-paint grille, the 100 ICW5-T is easy to install and discreet wherever it is positioned.
Spezifikationen
| Type | In-wall / In-ceiling - 2-way coaxial for 100 V / 70 V line installation |
|---|---|
| Drivers | 5" (13 cm) Polyglass Midbass, 1" (25 mm) Aluminium inverted dome Tweeter |
| Sensitivity (2.83 V / 1 m) | 88 dB |
| Frequency response (±3 dB) | 65 Hz - 23 kHz |
| Low frequency point (-6 dB) | 56 Hz |
| Power in 70 V | 2 / 4 / 7.5 W |
| Power in 100 V | 4 / 8 / 15 W |
| Recommended amplifier power | 15 - 100 W |
| External dimensions (Ø / Depth) | 184 x 100 mm |
| Cut-Out diameter | 157 mm |
| Depth from wall | 96 mm |
| Produktabmessungen | 184 x 184 x 100 mm |
| Bruttoabmessungen | 245 x 245 x 161 mm |
| Nettogewicht | 1.60 kg |
| Bruttogewicht | 2.40 kg |
| Minimale Bestellmenge | 1 Stk. |
| Marke | Focal |
| Serie | Intergrated Systems |
Spezifikationen
| Marke | Focal |
| Serie | Intergrated Systems |
